MC4 Solar Connectors & Crimping Tools — 1500V UL6703 | Ships Same Day from TX & CA
Photovoltaic Cable LLC supplies MC4-type solar panel connectors rated at 1,500 Volts, UL6703 listed, compatible with 6, 8, 10, and 12 AWG UL4703 PV wire. Available in 50-pair bags for field and commercial installations. Crimping tool sets for 6, 8, 10, and 12 AWG are also available. All in-stock items ship same day from our fulfillment centers in LaPorte, Texas and Rancho Dominguez, California.
Available products
| Product | Compatible AWG | Availability |
| MC4 Solar Connectors 1500V UL6703 | 10 & 12 AWG | In stock — 50-pair bag |
| MC4 Solar Connectors 1500V UL6703 | 8 AWG | Contact for availability |
| Crimping Tool Set | 10 & 12 AWG | Contact for availability |
| Crimping Tool Set | 6 & 8 AWG | In stock |
MC4 connector specifications

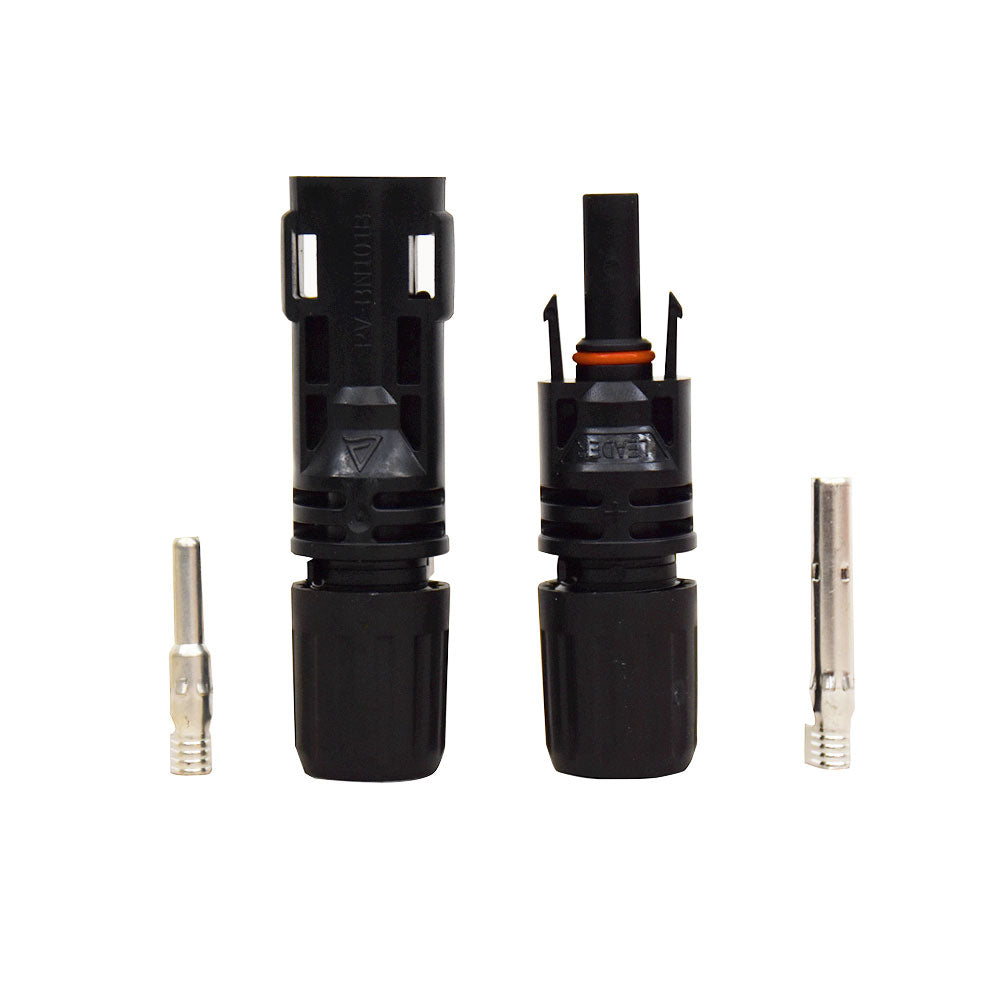

| Type | MC4-type solar panel connector |
| Voltage rating | 1,500 Volts |
| Certification | UL 6703 |
| Compatible wire | UL4703 PV wire — 6, 8, 10, 12 AWG |
| Package | 50-pair bags (100 connectors per bag) |
| IP rating | IP67 — weatherproof for outdoor installations |
| Application | Solar panel to string wiring connections |
Which connector do I need?
Select the connector that matches your PV wire gauge. The 10 & 12 AWG connector bag is compatible with our most popular 10 AWG PV Wire 2000V and 12 AWG PV Wire 2000V. For larger conductor runs, the 8 AWG connector is designed for use with 8 AWG PV Wire 2000V.
Crimping tools
Proper crimping is essential for reliable MC4 connections. Our crimping tool sets are matched to the connector size — the 10 & 12 AWG tool set for smaller gauge wire, and the 6 & 8 AWG tool set for larger conductors. Using the correct tool ensures the crimp meets the mechanical and electrical requirements for outdoor photovoltaic installations.
Recommended applications
- Solar panel to string wiring connections
- Module-to-module jumper connections
- String-to-combiner box DC connections
- Residential and commercial rooftop PV systems
- Ground-mount solar array wiring
Shipping & availability
In-stock items ship same day from our fulfillment centers in LaPorte, Texas and Rancho Dominguez, California. For items currently out of stock, contact our sales team to confirm availability and lead time.
Frequently asked questions
Are these true MC4 connectors?
These are MC4-type connectors rated at 1,500V and UL6703 listed. They are designed to be compatible with standard MC4 solar panel connectors used in photovoltaic systems.
How many connectors come in each bag?
Each bag contains 50 pairs (100 individual connectors — 50 male and 50 female).
Do I need the crimping tool?
Yes. MC4 connectors require a dedicated crimping tool for proper installation. Using a standard crimping tool will not produce a reliable connection and may void the connector warranty.
Are these connectors compatible with all PV wire brands?
Yes, provided the wire gauge matches the connector size. They are compatible with our UL4703 copper PV wire and other UL4703-listed PV wire of the same gauge.
